Includes Models: 5870H - Hearthmount, 8570F - Freestanding
Beginning Manufacturing Date is July 2000
MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Matte Front Door (2010-180) +$390.91
QTY: 2 Glass Retention Frame (2010-550) +$178.74
QTY: 2A Glass Retainer Screw [each sold separately] (4500-3430) +$10.95
QTY: 3 Front Door Frame (2010-602) +$308.99
QTY: 3A Door Frame Hardware (2010-602H) +$21.30
QTY: 4A Matte Black 6 inch Leg [Free Standing Model] [4 per unit, each sold separately] (2510-705) +$152.23
QTY: 4B Matte Black 4 inch Leg [Hearth Mount Model] [4 per unit, each sold separately] (2510-700) +$137.80
QTY: 5 Bottom Casting (2510-710) +$458.09
QTY: 6 Ash Grate Frame ~Old Part# 9510-720~ (2510-720) +$308.99
QTY: 7 Ash Grate (2510-730) +$137.92
QTY: 8 Ash Lip (2510-741) +$252.59
QTY: 9 Back Panel (2510-750) +$962.96
QTY: 10 Side Leg [4 per unit, each sold separately] (2510-760) +$130.18
QTY: 11 Oval Flue Collar (2510-770) +$257.12
QTY: 12 Top Casting (2510-780) +$584.77
QTY: 13 Polished Front Top Stone [2 per unit, each sold separately] (1141-251) +$91.70
QTY: 14 Polished Front Bottom Stone [2 per unit, each sold separately] (1141-252) +$69.43

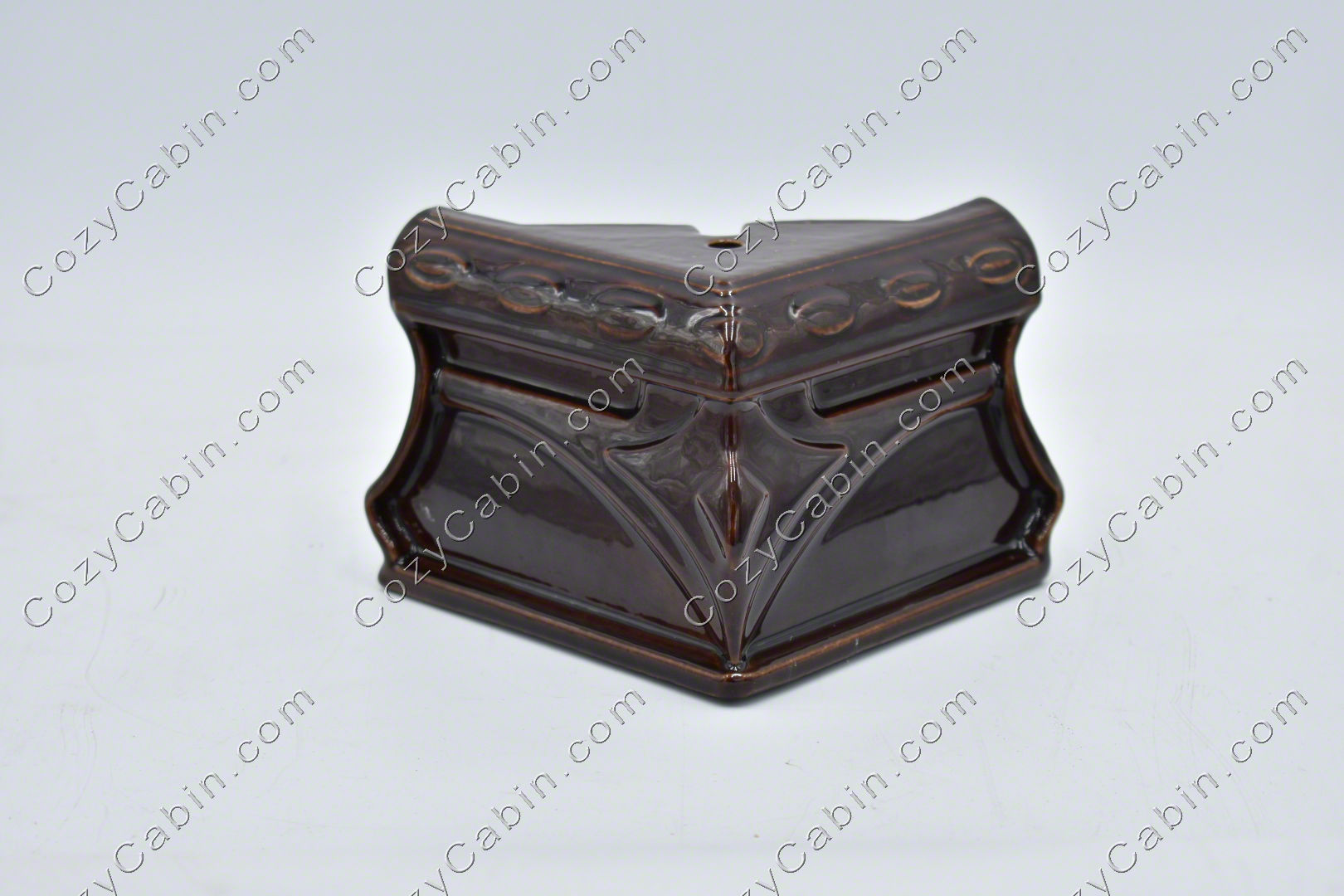

QTY: 15 Front Corner Stone [4 per unit, each sold separately] (1141-253) +$61.03
QTY: 16 Polished Side Stone [4 per unit, each sold separately] (1541-730) +$118.31
QTY: 17 Polished Gray Top Stone [3 per unit, each sold separately] (1541-780) +$217.68
QTY: 18 Firebrick [4 per unit, each sold separately] [original Firebrick was 1 piece; Upgraded to 2 pieces. Spacer is sold separately] (3060-430) +$61.03
QTY: 18A Rear Firebrick Retrofit [Two Piece Firebrick and Spacer] (95-83700) +$101.50
QTY: 18B Brick Spacer (5957-000) +$33.10
QTY: 19 Front Door Latch Kit [includes: Latch, Crank, Spring, Washer, Set Screw, 4 Spacers] [Handle sold separately] (90-73112) +$90.29
QTY: 19A Set Screw for Latch (4500-2976) +$10.95
QTY: 19B Door Latch Spacer (4700-0790) +$10.95
QTY: 19C Chrome Handle Crank (5010-081) +$47.87
QTY: 19D Latch Spring (5240-138) +$27.22
QTY: 19E Door Latch (5010-078) +$61.71
QTY: 19F Flat Washer for Latch (5021-032) +$10.95
QTY: 19G- Wood Handle with Bolt and Washer (90-71100) +$18.75
QTY: 20 Tamper Resistant Nut [2 per unit, each sold separately] (4200-0410) +$14.34
QTY: 21 Air Inlet/Ashpan Box (5570-010) +$321.08
QTY: 22 Ashpan with Gasket (95-54700) +$314.36
QTY: 22A Ashpan Only (5570-020) +$479.53
QTY: 22B Ashpan Gasket [4 ft per package] (3110-059-4) +$38.30
QTY: 22C Gasket Glue (99-090N) +$45.77
QTY: 23 Label Cable (5570-030) +$30.02
QTY: 24 Primary Air Control Slide (5570-040) +$190.82
QTY: 25 Primary Air Handle (5570-050) +$68.03
QTY: 26 Secondary Air Riser (5570-070) +$99.69
QTY: 27 Primary Air Manifold (5570-080) +$587.20
QTY: 28 Secondary Air Manifold (5570-110) +$505.05
QTY: 29 Secondary Air Pipe # 1 (5570-121) +$119.71
QTY: 30 Secondary Air Pipe # 2 (5570-122) +$118.31
QTY: 30A Cotter Pin (4300-0110) +$10.95
QTY: 31 Secondary Air Pipe # 3 (5570-123) +$121.11
QTY: 32 Secondary Air Pipe Locking Bracket (5570-130) +$84.69
QTY: 33 Baffle Support (5570-140) +$326.45
QTY: 34 Top Heatshield (5570-150) +$101.50
QTY: 35 Spline [1/8 inch x 3/4 inch x 1 1/4 inches] [2 per unit, each sold separately] (5000-001) +$38.98
QTY: 36 Spline [1/8 inch x 3/4 inch x 2 1/2 inches] (5000-002) +$13.01
QTY: 37 Spline [1/8 inch x 3/4 inch x 3 1/4 inches] (5000-003) +$Call to Order
QTY: 38 Spline [1/8 inch x 3/4 inch x 8 1/8 inches] [2 per unit, each sold separately] (5000-009) +$28.69
QTY: 39 Spline [1/8 inch x 3/4 inch x 10 3/8 inches] [2 per unit, each sold separately] (5000-013) +$Call to Order
QTY: 40 Spline [1/8 inch x 3/4 inch x 19 inches] [4 per unit, each sold separately] (5000-2236C) +$46.60
QTY: 41 Glass with Gasket (90-57005) +$330.48
QTY: 41A Glass Only (3030-026) *No Longer Available* [can Sub Glass with Gasket] +$*0.00*
QTY: 41B Glass Gasket [5 Feet in package] (3160-080-5) +$47.88
QTY: 41C Gasket Glue (99-090N) +$45.77
QTY: 42 Gasket Kit [includes: Front, Ash Pan Door, Glass Gaskets and Gasket Glue] (95-58700) +$109.90
QTY: 45 Ceramic Baffle (3120-920) +$210.97
QTY: 51 Threaded Rod [2 per unit, each sold separately] (5210-2330) +$28.69
QTY: 52 Refractory [1/2 inch x 9 3/4 inches] (1-0500-700) *No Longer Available* +$*0.00*
QTY: 53 Refractory [5 1/2 inch x 11 1/4 inches x 1 1/4 inch] [2 per unit, each sold separately] (1-0500-701) +$109.90
QTY: 54 Secondary Air Riser Tube Strap (5570-075) +$30.02
QTY: 55 Compact Oval to Round Adapter ~Old Part# 5700-710] (95-52710) +$135.45
QTY: 56 Extended Oval to Round Adapter ~Old Part# 5700-705~ (95-52705) +$135.45
QTY: 57 Bottom Heatshield [Free Standing Model] (5930-2005) +$147.72
QTY: 58 Bottom Heatshield Bracket [2 per unit, each sold separately] (5930-2006) +$45.77
QTY: 59 Wood Handle with Bolt and Washer (90-71100) +$18.75
QTY: 59A Handle Only (3900-177) *No Longer Available* [can Sub Handle Kit] +$*0.00*
QTY: 59B Screw for Handle (4500-1680) +$15.81
QTY: 59C Washer for Handle (4600-0400) +$10.95
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number)
QTY: 61 Door Pin Rivet [2 per unit, each sold separately] (4400-0300) +$10.95
QTY: 61A Washer [2 per unit, each sold separately] (4600-1210) +$10.95
QTY: 62 Door Spacer [3 per unit, each sold separately] (4700-0810) +$10.95
QTY: 63 Gloves (90-99031) +$66.00
QTY: 64 Soapstone Steamer [Blue Black Enamel Lid] (90-99112) +$199.00
QTY: 65 Soapstone Stovetop Thermometer (90-99120) +$30.00
QTY: 66 Gasket [Bottom Casting Channels] [4 ft per package] (3110-056-4) +$35.78
QTY: 67 Machine Screw [Ash Pan to Bottom Casting] [7 per unit, each sold separately] (4500-2114) +$10.95
QTY: 68 Machine Screw [Center Front Hole for Bottom Casting] (4500-1910) +$10.95
QTY: 69 Screw [Primary Air Control Slide Retention] [4 per unit, each sold separately] (4500-1876) +$10.95
QTY: 70 Screw [Primary Air Rod to Bottom, Shouder] (4100-0280) +$10.95
QTY: 71 Washer (4600-1400) +$14.34
QTY: 72 Slide Arm Washer (5570-060) +$15.81
QTY: 73 Screw [Bottom Heatshield Bracket to Bottom Cast] [2 per unit, each sold separately] (4500-3435) +$10.95
QTY: 74 Screw [Foot to Bottom Cast] [4 per unit, each sold separately] (4500-3200) +$10.95
QTY: 75 Flat Washer [Lock for Above] [4 per unit, each sold separately] (4600-0300) +$10.95
QTY: 76 Bolt [Rear Panel to Bottom Cast] [4 per unit, each sold separately] (4100-0115) +$10.95
QTY: 77 Lock Washer [for Above] [4 per unit, each sold separately] (4600-0400) +$10.95
QTY: 78 Nut [Finishing, for Above] [4 per unit, each sold separately] (4200-0200) +$10.95
QTY: 79 Screw [Second Air Riser Retainer. Strap to Rear Panel] [2 per unit, each sold separately] (4500-3436) +$10.95
QTY: 80 Gasket [Front Door Frame to Stone] [6 ft per package] (3160-392-6) +$57.46
QTY: 81 Screw [Front Door Frame to Primary Plenum] [4 per unit, each sold separately] (4500-1360) +$10.95
QTY: 82 Cotter Pin [Baffle Support to Second Air Plenum] (4300-0110) +$10.95
QTY: 83 Cap Screw [Top Heatshield to Top Cast] [4 per unit, each sold separately] (4500-0570) +$10.95
QTY: 84 Gasket [Top Cast Channel] [6 ft per package] ] (3110-057-6) +$57.46
QTY: 85 Threaded Rod [Top Cast to Bottom Cast] [2 per unit, each sold separately] (5210-2330) +$28.69
QTY: 86 Nut [for Above, Top] (4200-0410) +$14.34
QTY: 87 Nut [for Above, Bottom] [2 per unit, each sold separately] (4200-0400) +$10.95
QTY: 88 Lock Washer [for Above] [2 per unit, each sold separately] (4600-0700) +$10.95
QTY: 89 Gasket [Ashpan] [4 ft per package] (3110-059-4) +$38.30
QTY: 90 Gasket [Flue Collar Channel] [3 ft per package] (3110-056-3) +$26.84
QTY: 91 Cap Screw [Flue Collar to Rear Panel] [4 per unit, each sold separately] (4500-0400) +$10.95
QTY: 92 Screw [Empty Holes BeSide Flue Collar] [4 per unit, each sold separately] (4500-1100) +$10.95
QTY: 93 Owners Manual [hard copy] [6400-40416] (OMHC-H) +$9.99
QTY: 94 Owners Manual [electronic copy] [6400-40416] (OMEL-H) +$0.00
QTY: 95 Furnace Cement (6300-34080) +$37.52
|
